Product Details
7 Piece Kitchen Package VIKING Refrigerator, Oven, Oven | THERMADOR Cooktop | SHARP Microwave | ASKO Dishwasher | ZEPHYR Range Hood
SKU-B0000074
- SKU-B0000074
- MVBI7360WRSS | MVSOE630SS | CIT367TMS | SMD2470AS | DFI564 | ZANM90CS
Model # MVBI7360WRSS | MVSOE630SS | CIT367TMS | SMD2470AS | DFI564 | ZANM90CS
- SKU-B0000074
- MVBI7360WRSS | MVSOE630SS | CIT367TMS | SMD2470AS | DFI564 | ZANM90CS
Appliances in this package (7)
None Identified
None Identified

Discontinued Former Floor Model
Out of stock
Minor Surface Blemish Bottom Oven Door
Original Factory Plastic Still Protecting Stainless | None Identified | Unit Was Unboxed For Display Purposes Only

Manufactured 2019 | Excellent Condition
Out of stock
Minor Surface Blemishes
Out of stock
Model Number
MVBI7360WRSS | MVSOE630SS | CIT367TMS | SMD2470AS | DFI564 | ZANM90CS
Serial Number
052022R10002294
Brand
VIKING | THERMADOR | SHARP | ASKO | ZEPHYR
UPC
800284021650
capacity
Width
Height
Depth
weight
Finish/Color
Stainless Steel
Item Attributes
Brand Code: | VIKING | THERMADOR | SHARP | ASKO | ZEPHYR |
---|---|
Part Number: | MVBI7360WRSS | MVSOE630SS | CIT367TMS | SMD2470AS | DFI564 | ZANM90CS |
GTIN14: | 800284021650 |
Category Code: | Appliance Packages |
Sub Category Code: | Appliance Packages:Kitchen Packages |
Type: | TYPE_APPLIANCE |
Product Features Verified
- Product Description
- Specifications
ZEPHYR 35″ Anzio Wall 90cm Ss 600 Cfm Act Led ZANM90CS567471
THERMADOR 36″ Masterpiece Liberty Induction Cooktop Silver Mirror Framed CIT367TMS604749
VIKING 30″ Single Thermal Convection Oven Virtuoso 6 Series MVSOE630SS567437
VIKING 30″ Single Thermal Convection Oven Virtuoso 6 Series MVSOE630SS604034
VIKING 36″ Virtuoso Fully Integrated Bottom Freezer Refrigerator Mvbi7360w MVBI7360WRSS568186
SHARP 24″ Microwave Drawer Oven SMD2470AS625726
ASKO 24″ Dishwasher DFI564617475
ZEPHYR 35″ Anzio Wall 90cm Ss 600 Cfm Act Led ZANM90CS
Brand | Zephyr |
Manufacturer | Zephyr |
Category | Range Hood |
Sub-Category | Wall |
Vent Type | Convertible |
UPC | 646328005565 |
GTIN | 00646328005565 |
Country of Origin | Taiwan |
Model Group | ZAN-C |
Model Name | Anzio Wall |
Collection | Core Collection |
Replacement Model | ZAN-M90DS |
Blower Included | Yes |
Blower CFM w/ACT | 390, 290 |
Internal Blower 1 CFM | 600 |
Internal Blower 1 Min. Sones | 1 |
Internal Blower 1 Max Sones | 6 |
Minimum CFM | 200 |
Installation Type | Wall |
Installation Type | Wall |
For Outdoor Use | No |
Color | Stainless Steel |
Controls Type | ICON Touch® |
Blower Speeds | 5 |
Automatic Delay-Off | Yes |
Clean Air Function | No |
Lighting Type | LED |
Lights Quantity | 1 |
Watts Per Bulb | 9 |
Lights Levels | 2 |
Grease Filter Type | Mesh |
Compatible Mesh or Baffle Filter Part Number | 50200059 |
Duct Discharge | Vertical |
Duct Size; Horizontal; IN | N/A |
Duct Size; Vertical; IN | 6 |
Mounting Height Above Cooktop; IN | 26 - 34 |
Voltage | 120 |
Maximum Amperage | 5 |
ADA Compliant | No |
Warranty Parts / Labor | 3 / 1 |
Compatible Appliances | ZRC-01AN, Z1C-00AN, Z0F-B002, MUA006A, Z0F-C091 |
Bluetooth Connected | No |
Wi-Fi Connected | No |
Remote Included | No |
Remote Optional | No |
Energy Star Certified | No |
Alexa & Google Home Compatible | No |
CEC Title 20 Compliant | Yes |
Primary Material | Stainless Steel |
Wattage | 480 |
Certification | UL |
Nominal Width; IN | 36 |
Net Width; IN | 35.4375 |
Net Depth; IN | 22.0625 |
Net Height; IN | 27 - 48.5 |
Weight; LBS | 38.1 |
Ceiling Height Minimum | 8 ft. |
Ceiling Height Maximum | 9.5 ft. |
Chimney Height in. | 20.7 |
Chimney Width in. | 10.37 |
Chimney Depth in. | 10.62 |
Shipping Length; IN | 39.49 |
Shipping Width; IN | 23.62 |
Shipping Height; IN | 27.36 |
Shipping Weight; LBS | 55.8 |
Shipping Method | Small Parcel |
Freight Class | 300 |
Certification # | E127334 |
Clean Filter Alert | Yes |
Duct Type | Vertical |
Duct Type | Vertical |
THERMADOR 36″ Masterpiece Liberty Induction Cooktop Silver Mirror Framed CIT367TMS
Technical Specifications | |
Energy source | Electric |
Type of control | Direct Select 2.0, front |
Safety device | childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off |
Highlights | 17 power levels, Direct Select 2.0, flexInduction, fryingSensor Plus, powerBoost |
Energy consumption of hob | 185.0 Wh/kg |
Construction type | |
Color of frame | Stainless steel |
Color of surface | silver, Stainless steel |
Installation type | Built-in |
Design - line | Convenience frame |
Number of electric elements | 0 |
Number of electric cooking zones | 5 |
Type of frame | Convenience frame |
Number of gas burners | 0 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Total number of cooktop burners | 5 |
Number of radiant elements | 0 |
Number of electric warming zones | 0 |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 3/8'' + 3 7/8'' x 37'' x 21 1/4'' |
Net weight (lbs) | 56 lbs |
Minimum distance from counter front (in) | 2 1/2'' |
Minimum distance from rear wall (in) | 2 3/8'' |
Cooking zone 1 | |
Location of 1st heating element | front left |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Power of 2nd heating element (kW) | 3.3 kW |
Type of 2nd heating element | Induction heating |
Energy consumption of 2nd heating element | 185.0 Wh/kg |
Cooking zone 3 | |
Location of 3rd heating element | back left |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Location of 5th heating element | back right |
Cooking zone 6 | |
Location of 6th heating element | center right |
Power of 6th heating element (kW) | 3.3 kW |
Type of 6th heating element | Induction heating |
Energy consumption of 6th heating element | 185.0 Wh/kg |
Cooking zone 7 | |
Location of 7th heating element | front right |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Power of 9th heating element (kW) | 3.3 kW |
Energy consumption of 9th heating element | 185.0 Wh/kg |
Safety | |
Residual heat indicator | Separate |
Safety device | childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off |
Main on/off switch | Yes |
Connection | |
Frequency (Hz) | 60 Hz |
Energy source | Electric |
Power Cord Length | 37'' |
VIKING 30″ Single Thermal Convection Oven Virtuoso 6 Series MVSOE630SS
VIKING 30″ Single Thermal Convection Oven Virtuoso 6 Series MVSOE630SS
VIKING 36″ Virtuoso Fully Integrated Bottom Freezer Refrigerator Mvbi7360w MVBI7360WRSS

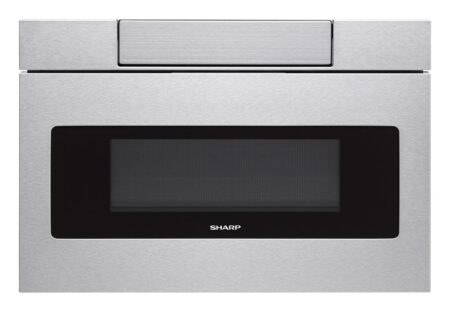

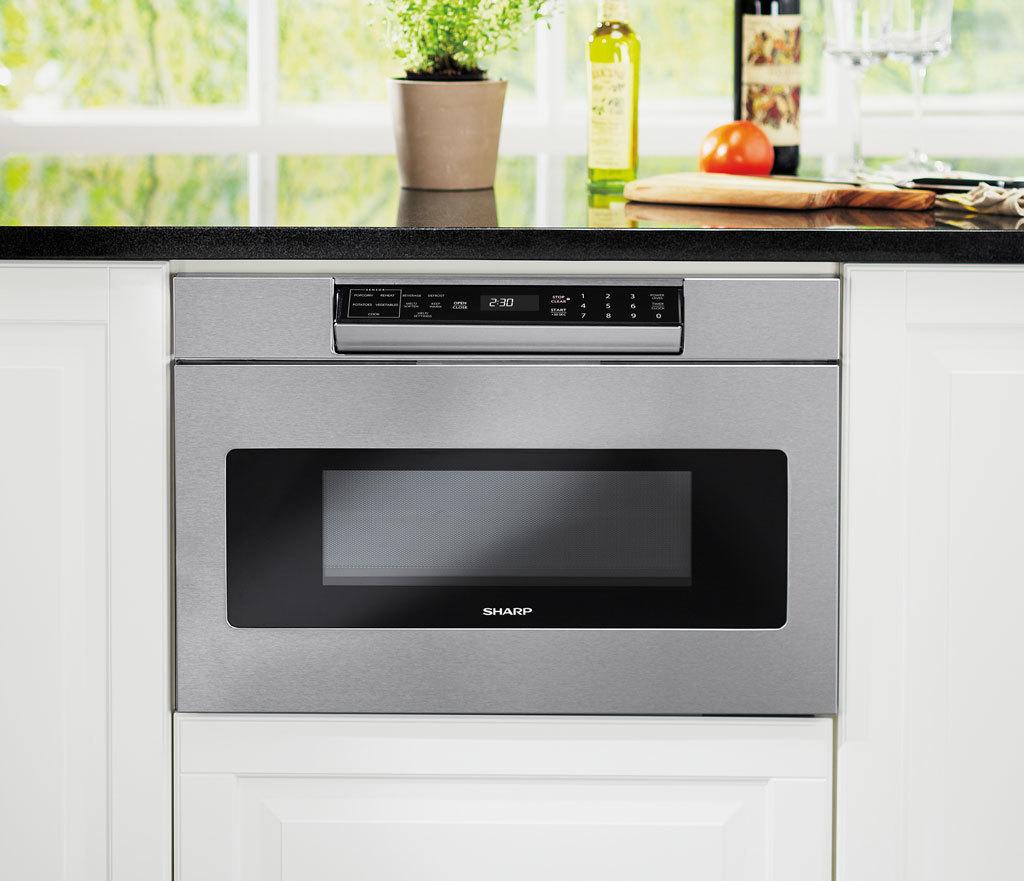

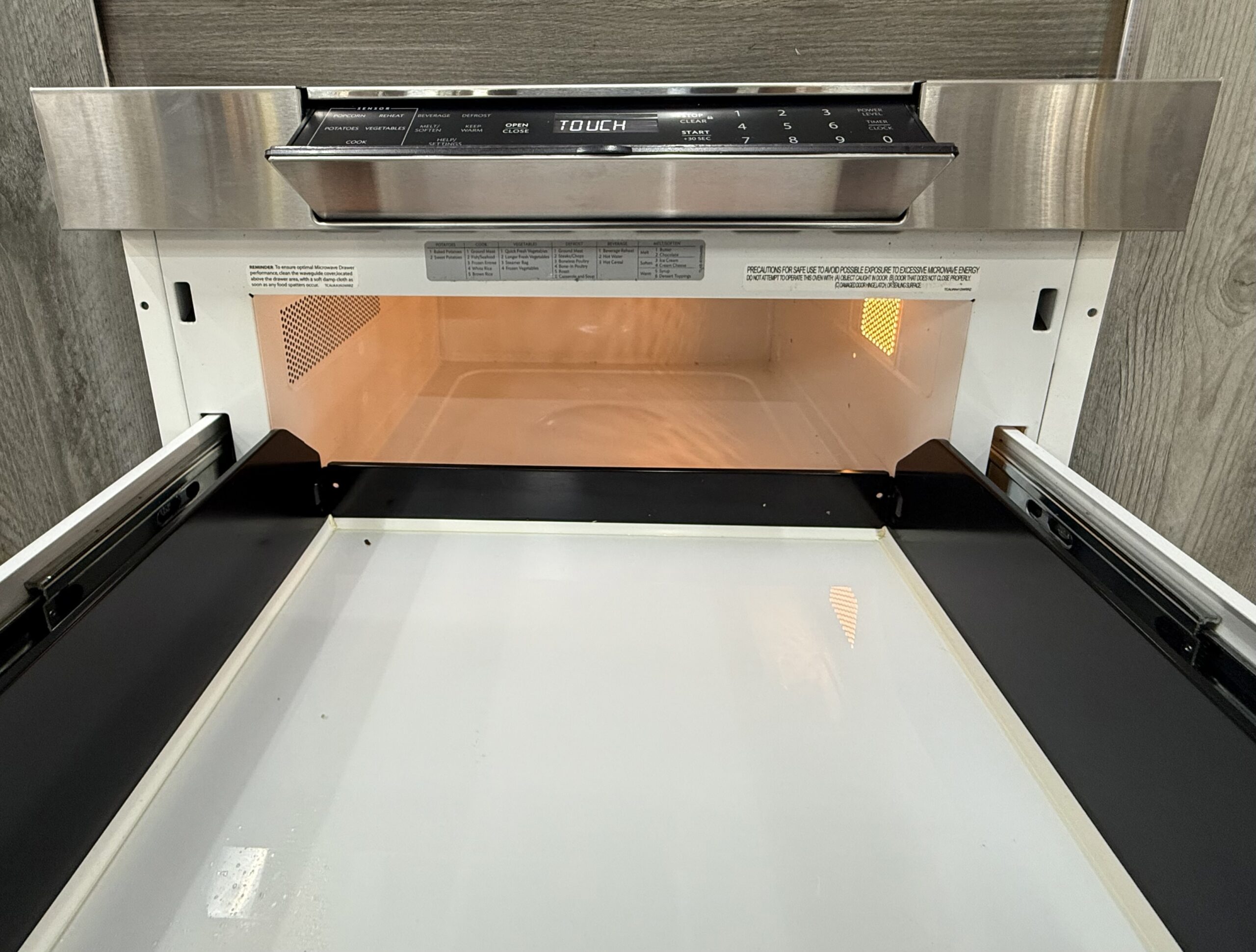

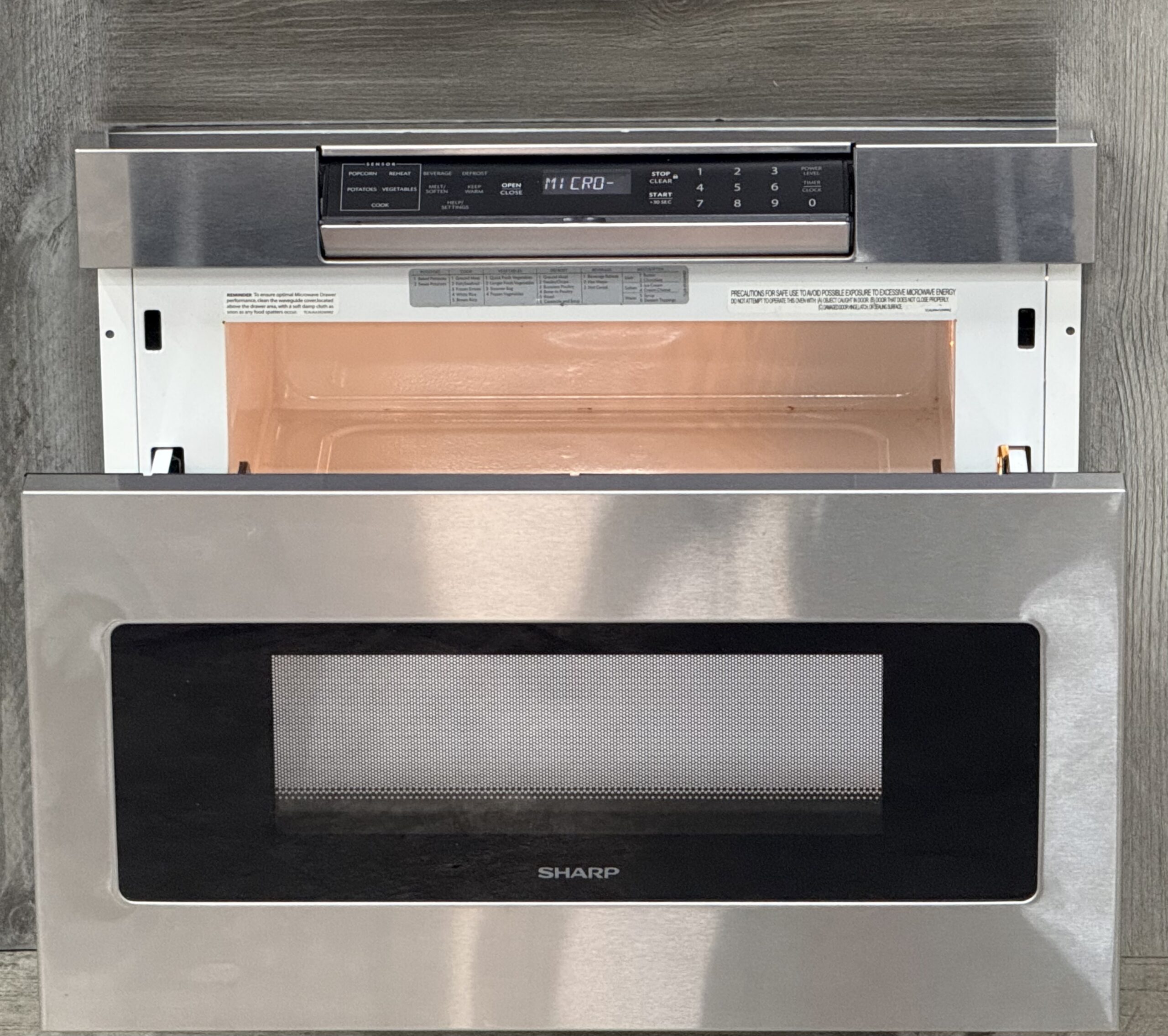

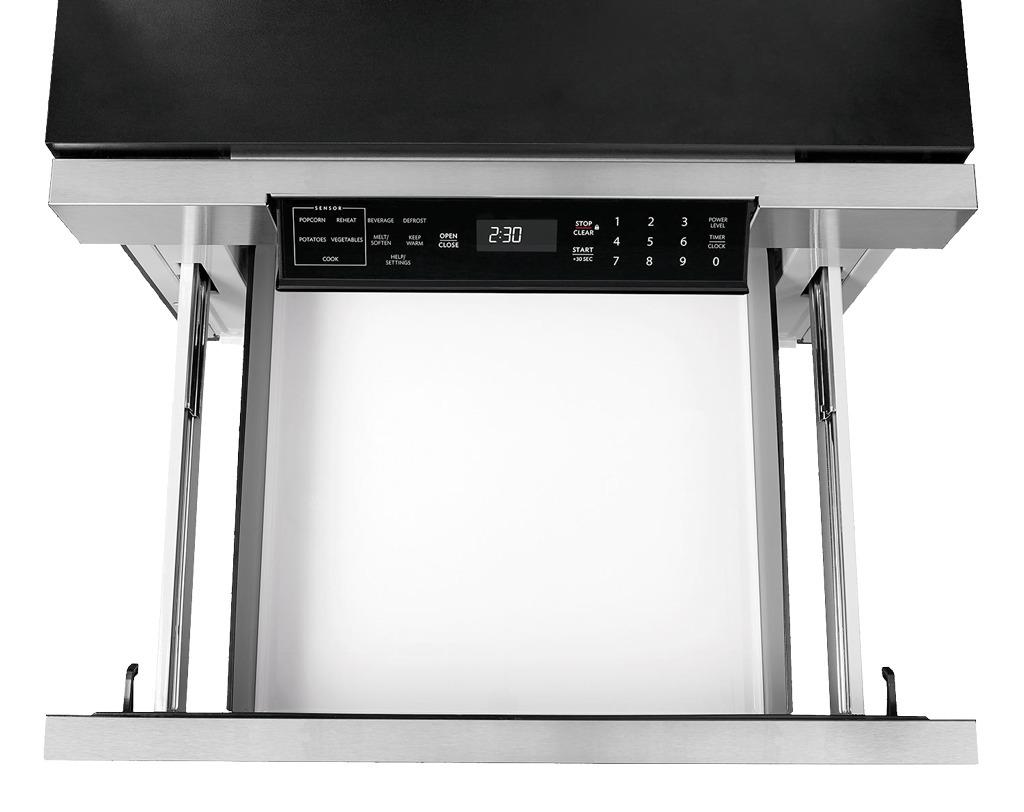

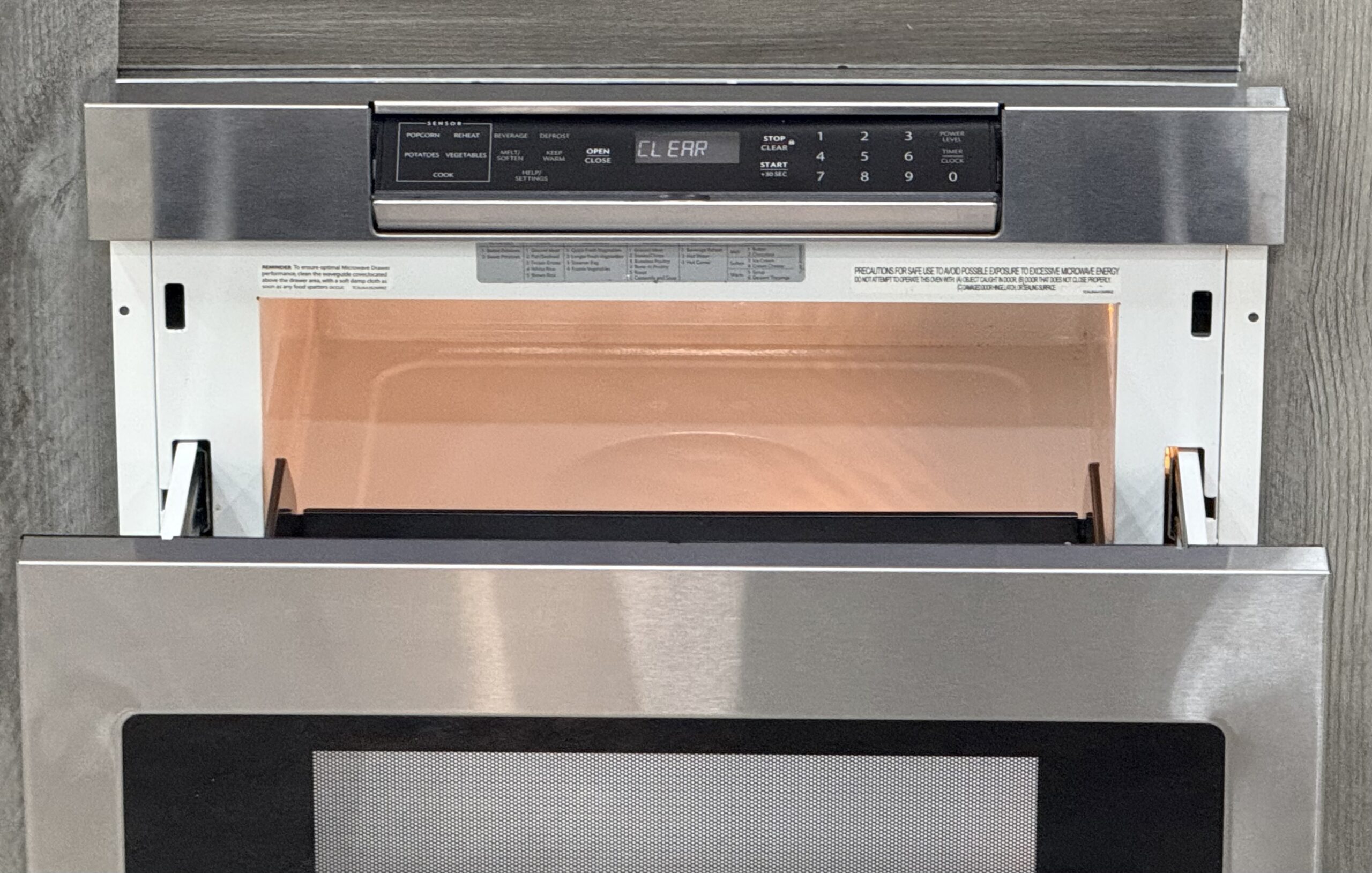

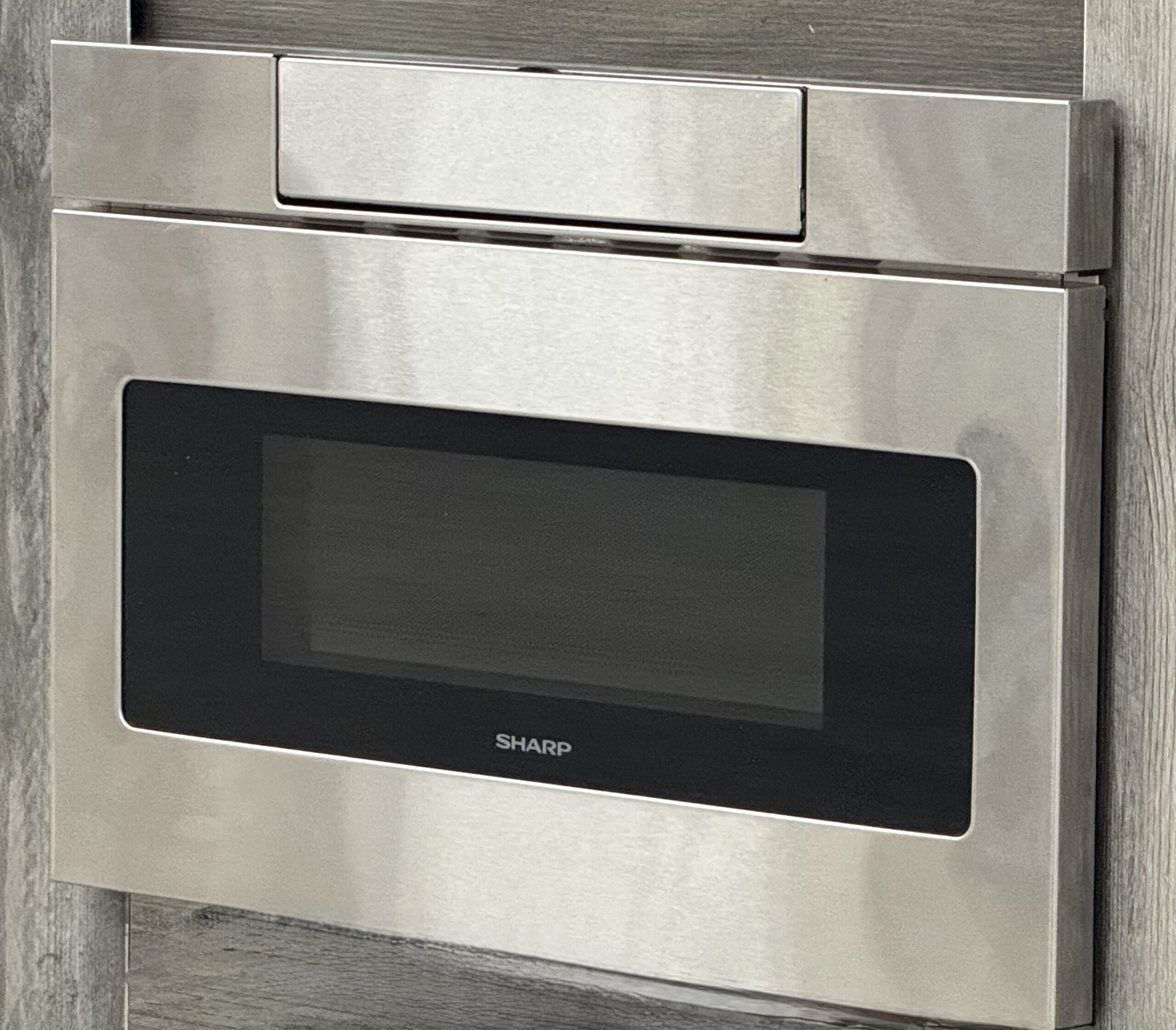

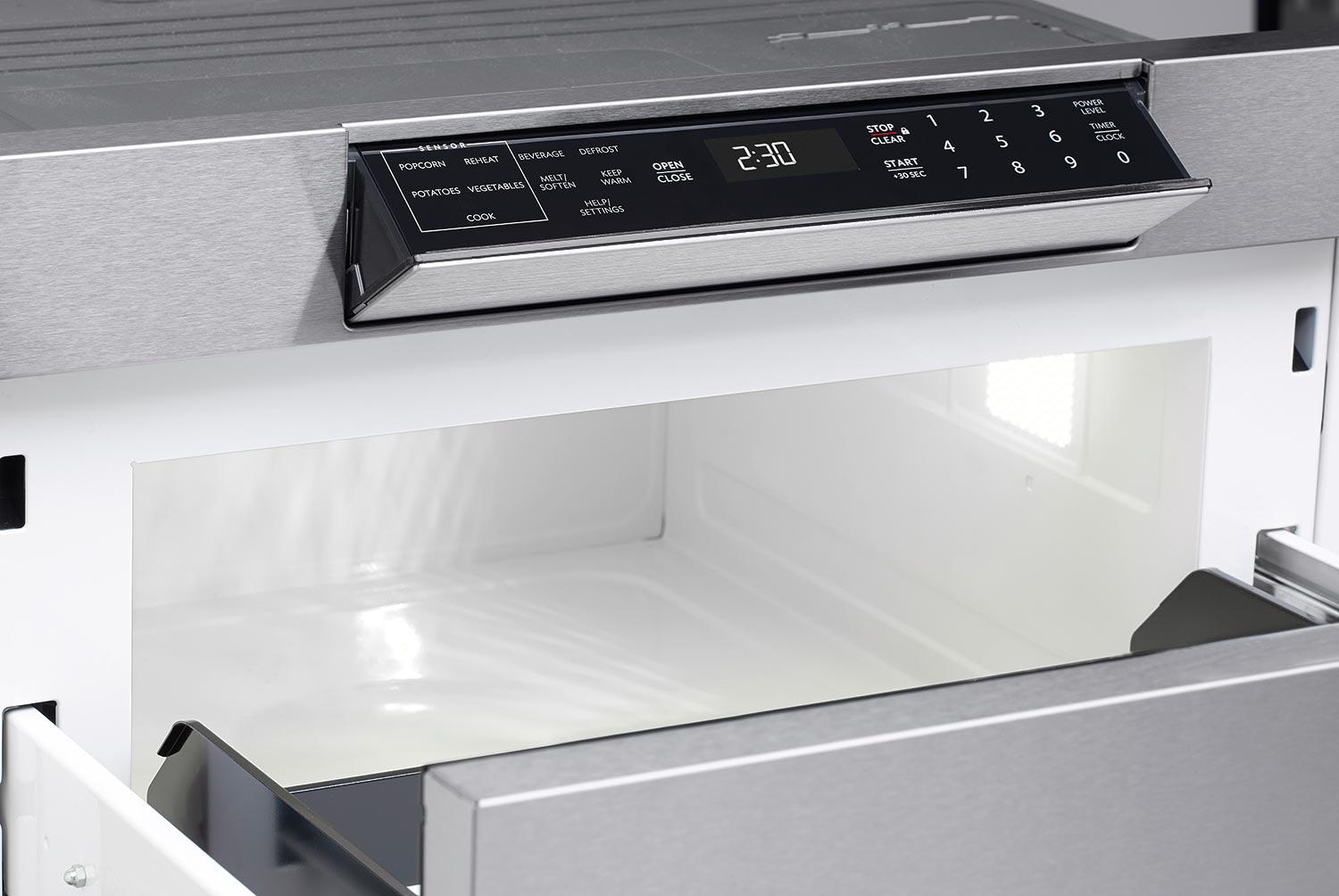

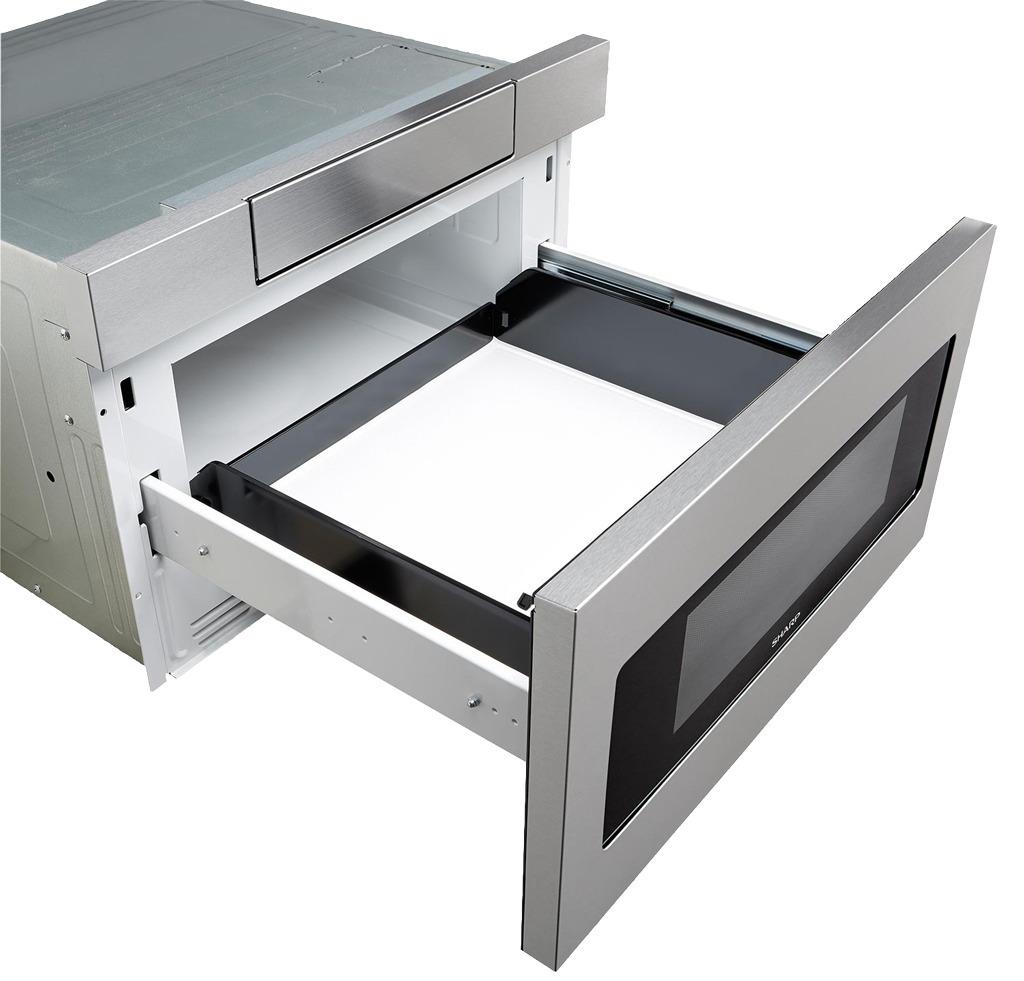

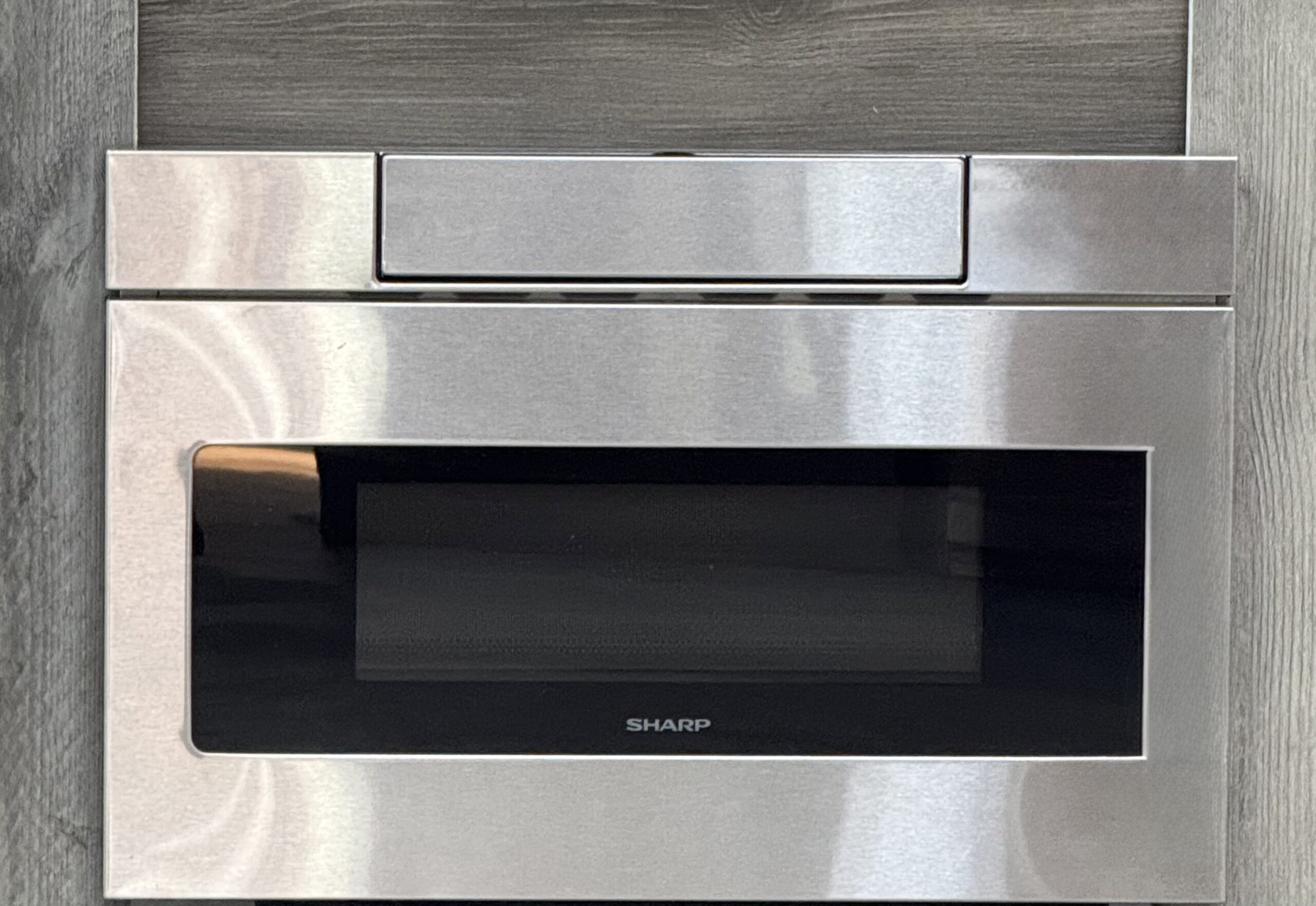

SHARP 24″ Microwave Drawer Oven SMD2470AS
Features | |
Color : | Stainless Steel |
Drawer Opening : | Easy Open |
Sensor Cook®, Reheat, Popcorn : | 12 Settings |
Preprogrammed Reheat : | 2 Settings |
Automatic Defrost : | 6 Settings |
Microwave Keep Warm : | Yes, up to 30 minutes |
Clock : | Yes |
Minute Plus : | Yes |
Front-mounted touch controls : | Yes, angled for easy viewing |
Digital LCD Display : | Yes |
Timer/Settings : | Yes |
Control lock : | Yes |
Demo mode : | Yes |
Capacity : | 1.2 cu. ft. capacity (holds 9" x 13" dish) Internal capacity is calculated by measuring maximum width, depth, and height. Actual capacity for holding food is less. |
Built-in Ready : | Yes, this Microwave Drawer Oven can be installed below any electric or gas wall oven |
Interior Oven Light : | Yes |
Wattage : | 950 Watts |
Additional Specifications | |
Power Ratings : | 120V, 60Hz / 1.67kW, 14.5 Amps |
Safety Compliance : | FCC, DHHS, UL listed |
Limited Warranty : | One-year parts and one-year labor with in-home service. The warranty continues for an additional four years, for a total of five years, on the magnetron tube for parts only. |
Power Connection : | 3-Prong Grounding Plug (included) |
Accessories : | 24" Flush Mount Deflector Vent: SKMD24F0AS (1) PREF-B019MRP0 Flush Mount Deflector Vent (2) LX-CZB055MRE0 Mounting screws |
Dimensions & Weight (in./lbs.) ) (w x h x d) | |
Cutout Dimensions (w x h x d) : | 22 1/8" x 15 9/16" x 23 1/2" |
Product Dimensions (w x h x d) : | 23 7/8" x 15 7/8" x 23 1/64" |
Product Weight (lbs.) : | 74 lbs |
Shipping Weight (lbs.) : | 86 lbs |
ASKO 24″ Dishwasher DFI564
Noise level (max) | 42 dB(A) |
Number of place settings | 16 pcs |
Number of racks | 3 |
Upper rack type | Premium, fixed tines and foldable wine shelves |
Size | XL |
Automatic dosing system | No |
Installation | Panel ready |
Series | Logic |
Construction and performance | |
8 Steelâ„¢ - Vital parts of the dishwasher made in stainless steel | Yes |
No need to rinse the dishes thanks to Super Cleaning Systemâ„¢ | Yes |
Automatic water-softener for better washing performance | No |
Number of spray arms | 3 pcs |
Number of spray zones | 9 |
Cleaning systems | Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off. Stainless steel spray arms Aqua Levelâ„¢ Sensor No need to rinse the dishes thanks to Super Cleaning Systemâ„¢ Cutlery Sprayâ„¢ - Extra dishwashing power for the cutlery basket |
Use and flexibility | |
Number of place settings | 16 pcs |
Number of racks | 3 |
Top tray | Easy height adjustment Handle Removable |
Upper rack type | Premium, fixed tines and foldable wine shelves |
Upper basket system | Switch wheels |
Upper basket | Standard knife stand Fixed glass support Fixed pin rows Foldable wine shelves to right Foldable wine shelves to left Handle with plastic logotype Small distance between the basket threads - makes loading easy and prevents small items to fall through |
Middle basket | Without middle basket |
Lower rack type | Premium - Basket wiring in steel, fixed pin rows and removable cutlery basket |
Lower rack | Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle with plastic logotype Foldable/divisible rear pin row Cutlery basket |
Automatic dosing system | No |
Interior light | No |
Interaction and control | |
Possible to control via Wi-Fi | No |
Type of display | LCD display |
Status Lightâ„¢ - Visual indication of dishwashing progress | Yes |
Remaining time indication | Yes |
Wash end indication | Displayed with sound and light |
Language settings | Chinese simpified Chinese traditional Swedish Slovenian Slovak Russian Portuguese Polish Norwegian Dutch Latvian Lithuanian Japanese Italian Croatian French Finnish Estonian Spanish English German Danish Czech Ukrainian |
Functions, programs and modes | |
Programs | Anti odour Sanitize Light wash Self cleaning Rinse and hold programme Time program Standard Intensive program Quick wash |
Delayed start | Possible to delay up to 24 hours |
Options and modes | Enable/disable automatic door opening Super Rinseâ„¢ - Two extra rinses Time set Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Heat Boost Mode |
Design and integration | |
From the front adjustable door spring | Yes |
From front adjustable rear foot | Yes |
Installation | Steam protection strip Trim kit Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Multi fit outlet hose Velcro strips for easy mounting and adjustment of the separate custom door |
Sliding door | No |
Possible to install elevated | Yes |
Custom door size | Custom door size 680-760 |
Min. niche width | 24 '' |
Min. niche height | 32 5/16 '' |
Depth (incl. wall spacing) | 21 7/8 '' |
Height setting | 2 1/16 '' |
Adjustable kick plate | 30-94/0 |
Safety and maintenance | |
Aqua Safeâ„¢ | Anti Blockâ„¢ - Self cleaning drain pump Light and sound alarm Maximum time for water intake Extra durable PEX inlet hose Stand-by water protecion - Leakage detection when machine is off Aqua Levelâ„¢ Sensor - Ensures an optimized water level Aqua Detectâ„¢ - Instant recognition of any leakage in the motor compartment Detection of water leakage on the bottom plate Waterproof bottom plate Extra durable stainless steel container Sealing points outside container |
Aqua Safeâ„¢ system | Yes |
Child safety | Kid Safeâ„¢ - Lockable controls |
Indication of low level of rinse-aid | Notification in display |
Technical data | |
Water connection | Hot&cold water |
Adapter for water connection | No |
Max. temperature of inflow water | 140 °F |
Noise level (max) | 42 dB(A) |
Reference programme | 1 |
Duration of standard programme | 125 min |
Estimated yearly energy consumption | 220 kWh |
Energy consumption - normal program | 1 kWh |
Estimated annual water consumption | 647.5 gal |
Water consumption | 3 gal |
Power consumption in standby mode | 0.5 W |
Plug type | USA |
Connected load | 1300 W |
Voltage (V) | 120 V |
Number of phases | 1 |
Fuse | 15 A |
Frequency | 60 Hz |
Required inlet water pressure psi | 0,03-1 |
Net weight | 88.2 lb |
Dimensions | |
Width | 23 15/16 '' |
Height | 32 1/4 '' |
Depth | 21 13/16 '' |
Maximum product height | 34 5/16 '' |
Length of electrical cord | 71 7/16 '' |
Depth with door open | 46 7/8 '' |
Length inlet hose | 64 3/16 '' |
Length outlet hose | 90 9/16 '' |
Logistic information | |
Packaging width | 25 3/16 '' |
Packaging height | 35 1/16 '' |
Packaging depth | 26 3/4 '' |
Gross weight | 94.8 lb |
Product code | 740105 |
EAN code | 3838782627453 |
Noise level (max) | 42 dB(A) |
Number of place settings | 16 pcs |
Number of racks | 3 |
Upper rack type | Premium, fixed tines and foldable wine shelves |
Size | XL |
Automatic dosing system | No |
Installation | Panel ready |
Series | Logic |
Related Products
-
-58% OFF
FREE SHIPPING
3 Piece Kitchen Package LG Oven, Refrigerator, Dishwasher
MSRP: $10,172.00Individual Price: $4,781.12Bundle Price: $4,303.01Save $5,868.99View ProductAlready in cart
-
-44% OFF
FREE SHIPPING
4 Piece Kitchen Package THERMADOR Refrigerator, Oven, Oven, Cooktop
MSRP: $30,493.89Individual Price: $18,993.59Bundle Price: $17,094.23Save $13,399.66View ProductAlready in cart
-
-51% OFF
FREE SHIPPING
4 Piece Kitchen Package SMEG Refrigerator, Oven, Oven, Dishwasher
MSRP: $10,496.99Individual Price: $5,771.70Bundle Price: $5,194.53Save $5,302.46View ProductAlready in cart
-
-41% OFF
FREE SHIPPING
2 Piece Kitchen Package 42″ VIKING Refrigerator, Freezer Columns
MSRP: $20,688.00Individual Price: $13,570.52Bundle Price: $12,213.47Save $8,474.53View ProductAlready in cart
